Quest 506 Commercial Dehumidifier

Author : Carmen Cerrelli

Engineered for Performance. Designed for Efficiency.

Step into the future of moisture control with the Quest 506 High-Efficiency Dehumidifier — your ultimate ally in creating a clean, controlled environment.

Built for forward-thinking professionals, the Quest 506 blends compact design, quiet power, and industry-leading efficiency, making it ideal for grow rooms, food processing facilities, and manufacturing spaces.

With cutting-edge M-CoRR™ technology, this unit removes up to 506 pints of moisture per day — all while drawing minimal power. Its advanced MERV-13 air filtration system traps bacteria, mold spores, and airborne contaminants to help protect your product, process, and people.

The sleek digital control panel (with a Dark Mode for nighttime use) and plug-and-play design mean setup is a breeze. Mount it overhead or use it freestanding — the Quest 506 is built to fit your space and workflow.

Fully compliant with California Title 24, the Quest 506 meets strict energy efficiency standards — proving that powerful performance and sustainability can go hand in hand.

10 units available.

Quest 506: Powerfully Quiet. Incredibly Efficient. Ready When You Are.

$5,500.00



Quest 506 Commercial Dehumidifier

The Quest 506 is the industry’s first 500-pint, 230 V single-phase commercial dehumidifier, purpose-built for commercial-scale growing operations. As with all Quest products, the 506 can be operated from the ground or conveniently mounted overhead to save space.

It is the most energy-efficient, high-capacity dehumidifier on the market—drawing only 11 Amps while delivering an impressive 8.1 pints/kWh. Built in the USA, this unit is engineered for durability, performance, and maximum efficiency.

The system comes equipped with standard MERV-11 filtration, capable of capturing particles, including mold spores, as small as 1 micron. For added flexibility, optional condensate pump and ducting kits are available to accommodate specialized applications or space-restricted environments.

Note: A separate humidistat is required. We recommend the DEH 3000R Wall Mounted Unit for optimal performance.

10 units available.

Author

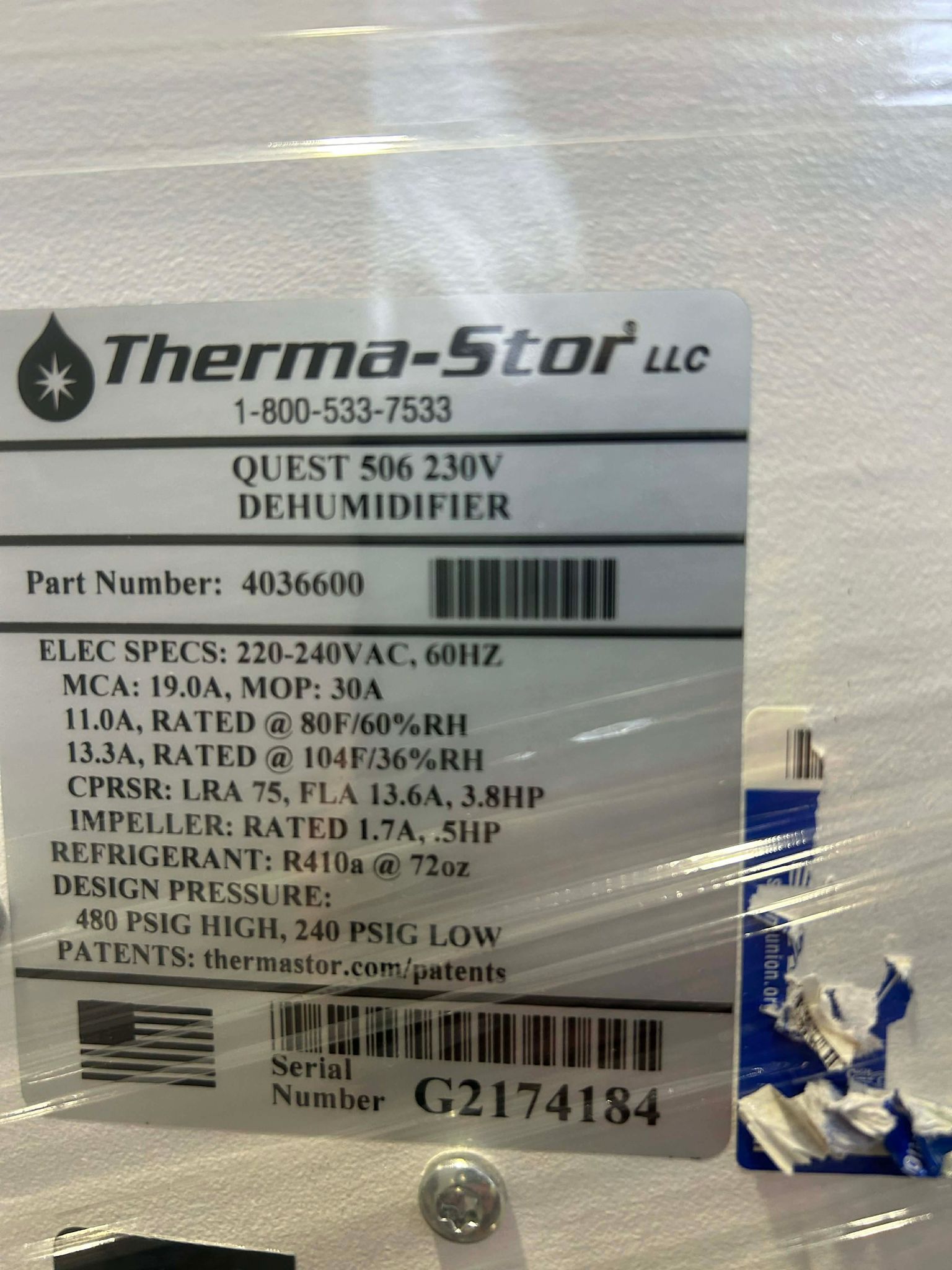

Quest 506 High-Efficiency Specifications

Specification Details
CFM 1500 @ 0.0” WG
Power 2700 Watts
Supply Voltage 220–240 VAC 1 Phase – 60 Hz
Current Draw 11.0A
Rated Current Draw (104°F | 36%) 13.3A
Minimum Circuit Ampacity (MCA) 19A
Maximum Overcurrent Protection 30A
Recommended Breaker Size 20A
Energy Factor 3.8 L/kWh
Operating Temp 56°F Min – 95°F Max
Water Removal 506 pints/day
Efficiency 8.1 pints/kWh
Air Filter (MERV-13) Size: 18” x 20” x 2”
Power Cord 14ga 10’, NEMA 6-20P
Drain Connection 3/4” Threaded NPT
Refrigerant Type R410A
Refrigerant Amount 4 lb 8 oz
Width 28.9”
Height 34.1”
Length 44.8”
Weight 280 lbs
Shipping Weight 340 lbs
