Evolved Extraction HiVE15™ Thin Film Distillation System
Evolved Extraction Solutions | HiVE15™ | 0.15 m²
HIVE15™ BENCHTOP THIN FILM DISTILLATION SYSTEM

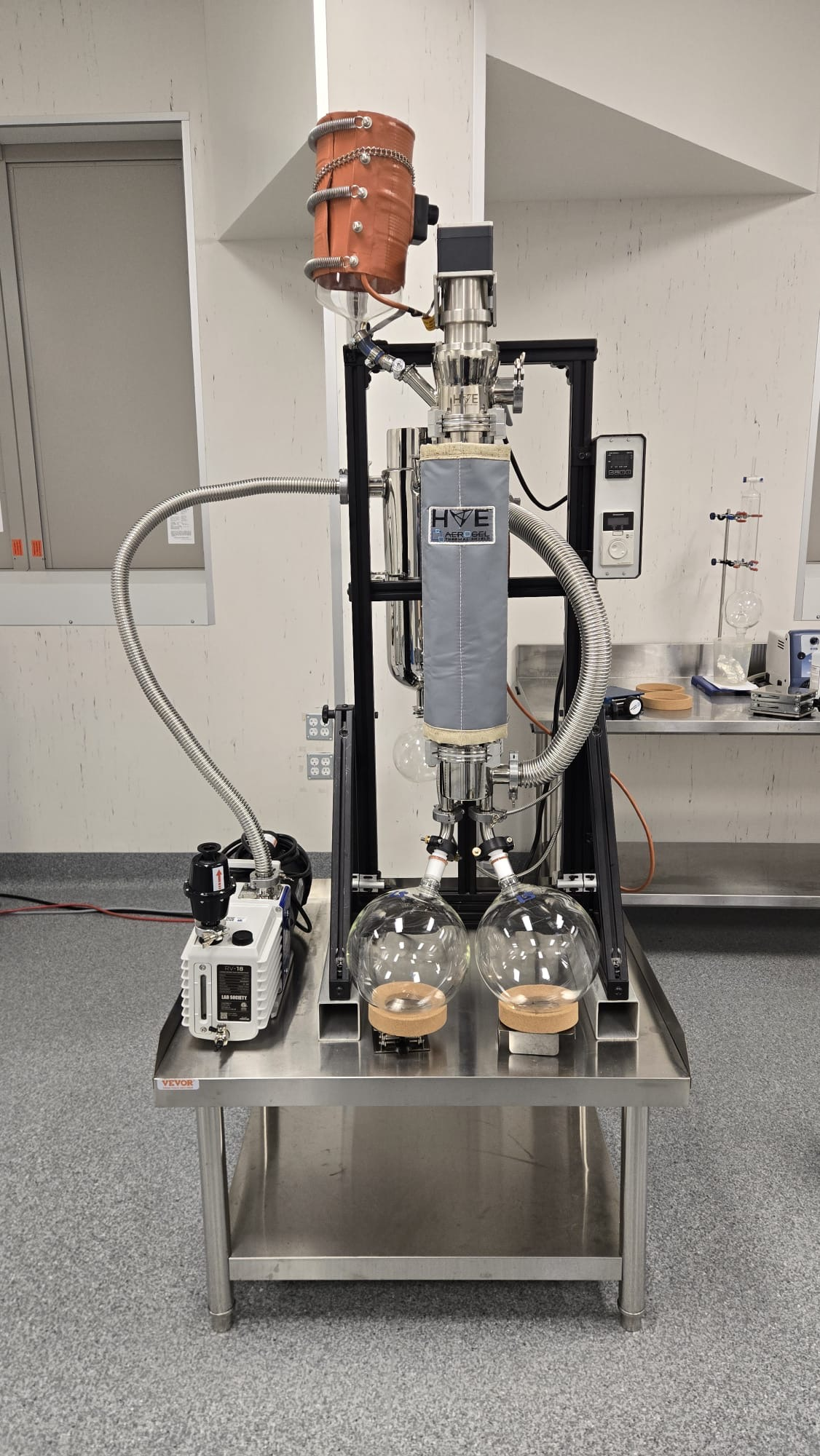

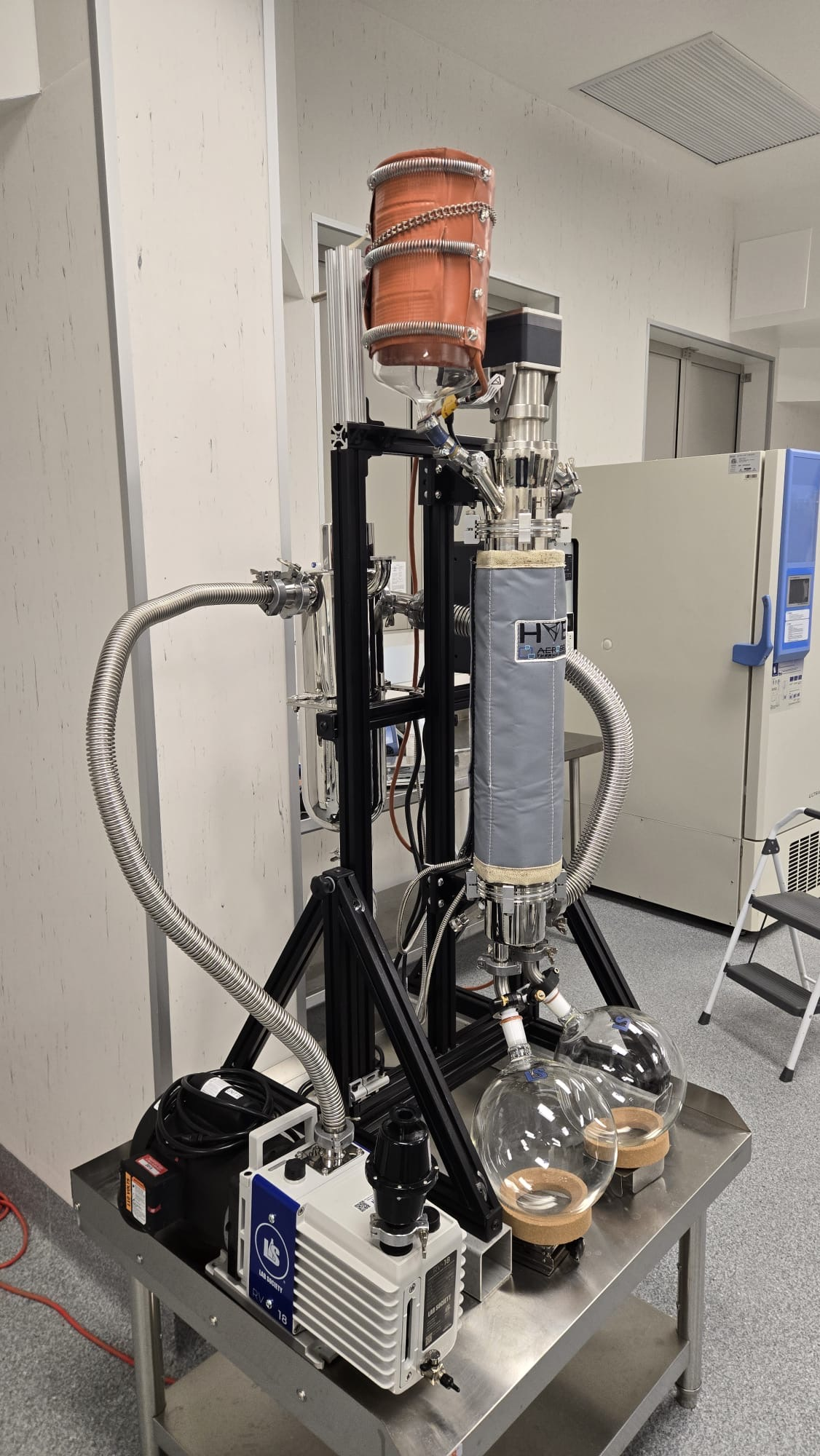

The Evolved Extraction HiVE15™ is a compact, modular thin film / wiped film distillation system designed to deliver fast, precise processing in a small benchtop footprint.
With a 0.15 m² evaporation surface area, the HiVE15 is capable of approximately 1–2 L/hr final distillation feed rates and 2–4+ L/hr volatile stripping feed rates, making it an excellent option for processors looking for efficient distillation without the footprint of a larger production system.
The system’s modular design allows operators to switch between different operating configurations, while quick-disconnect fittings make setup and breakdown straightforward.
KEY FEATURES
- 0.15 m² evaporation surface area
- 1–2 L/hr final distillation feed rate
- 2–4+ L/hr volatile stripping feed rate
- 304L stainless steel evaporator body
- 240V single-phase, 4,800W evaporator heating
- High-surface-area stainless steel dewar-style cold trap
- Quick-swap internal condenser and stripping cone
- Six-blade PTFE/Teflon wiper design
- Precise material flow and residence-time control
- Universal quick-disconnect fittings
- Compact 20″ x 24″ tabletop footprint
IDEAL FOR
- Cannabis distillation
- Hemp processing
- Thin film distillation
- Wiped film processing
- Fractionation
- Distillate production
- Volatile stripping
- R&D and production laboratories
- Commercial extraction facilities
