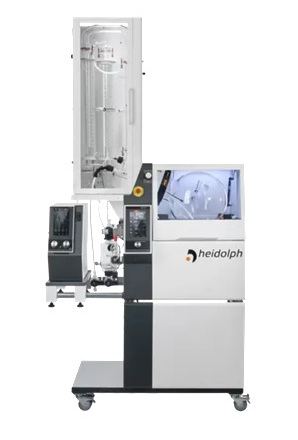

Heidolph Hei-VAP Industrial 20L Rotary Evaporator with Hei-VOLUME Distimatic Pro Automatic Module
Brand New in Original Packaging | Complete 20L Automated Solvent Recovery System
The Heidolph Hei-VAP Industrial Rotary Evaporator with Hei-VOLUME Distimatic Pro Automatic Module is a premium large-scale solvent recovery system engineered for continuous industrial operation in pharmaceutical, cannabis extraction, chemical processing, and research environments.
This brand-new system, supplied in its original packaging, combines the Hei-VAP Industrial Rotary Evaporator with the Hei-VOLUME Distimatic Pro 24/7 Automatic Module, allowing for automated flask filling, continuous solvent recovery, and overpressure drainage for efficient, unattended operation.
Built with operator safety, precision process control, and high solvent recovery rates in mind, this configuration features Glassware A1C, specifically designed for low-boiling solvents while maximizing condensation efficiency.
Key Features:
- Brand new in original packaging
- Complete 20L automated solvent recovery system
- Hei-VAP Industrial Rotary Evaporator
- Hei-VOLUME Distimatic Pro 24/7 automatic filling module
- Glassware A1C configuration for low-boiling solvents and maximum recovery efficiency
- 20L evaporating flask
- Two 10L receiving flasks
- Motorized lift system
- Variable rotation speed: 6–160 RPM
- Universal heating bath compatible with water or alternative heat transfer fluids
- Heating bath temperature range: 20°C–180°C
- 4,000W heating capacity
- ±1°C bath temperature accuracy
- Integrated automatic bath refill system for continuous operation
- Integrated vacuum controller
- Programmable vacuum control with SETpressure and AUTOaccurate compatibility
- Built-in timer and programmable process ramps
- Large 7-inch touchscreen control panel with illuminated process displays
- Illuminated evaporation flask for improved process visibility
- Maximum condensing surface area: 1.2 m²
- Spillover prevention system and bottom drain release valve
- Receiver cassette protection for improved operator safety
- High-impact transparent PMMA safety door
- Non-fogging safety glass and metal-frame protective hood
- Fully maneuverable mobile base cart with enclosed storage for pumps, glassware, solvents, and accessories
- GMP qualification documentation (IQ/OQ) available for validation applications
- IP20 protection class
Included with the System:
- Heidolph Hei-VAP Industrial Rotary Evaporator
- Hei-VOLUME Distimatic Pro 24/7 Automatic Module
- Glassware A1C assembly
- 20L evaporating flask
- Two 10L receiving flasks
- Ascending condenser
- Descending condenser
- Ascent pipe
- Automatic bath refill system
- Mobile base cart with integrated storage
Engineered for demanding production environments, the Hei-VAP Industrial delivers exceptional process control, user safety, and solvent recovery efficiency. Its automated operation reduces manual intervention while supporting continuous, high-throughput production for extraction, distillation, and purification workflows.
Whether expanding production capacity or replacing an existing solvent recovery system, this Heidolph package offers a premium industrial solution from one of the industry’s most respected laboratory equipment manufacturers.
