Root Sciences VTA VKS-70

Author : Gaia Moravcik

Root Sciences VTA VKS-70

Gently Used – 1 Available

Engineered in Germany, built for precision. The VKS-70 delivers high-throughput wiped film distillation with unmatched cannabinoid purity and performance.

  • Continuous feed, thin-film operation
  • Gentle thermal separation for sensitive compounds
  • Ideal for high-purity cannabinoid refinement
  • Backed by Root Sciences support

Trusted by top labs for elite distillation workflows.

$135,000.00

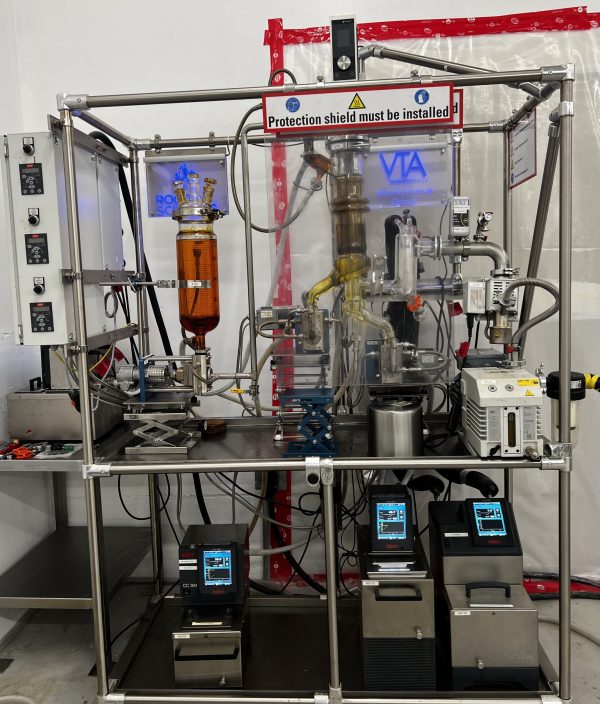

Root Sciences VTA VKS-70 – Short Path Distillation System

The Root Sciences VTA VKS-70 is a premium short path distillation system designed for high-throughput purification of cannabinoids and terpenes. Built with German engineering by VTA, this wiped film molecular distillation unit is optimized for precision, speed, and repeatability. It enables processors to achieve exceptional purity in a continuous feed, thin-film process—making it a preferred choice for commercial cannabis oil refinement at scale.

Key Features

  • German-engineered wiped film distillation system for cannabinoid purification
  • High-throughput design with continuous feed and discharge
  • Short residence time and gentle thermal separation ideal for sensitive compounds
  • Modular, GMP-ready system with advanced process controls
  • Exceptional separation of volatiles, cannabinoids, and residual solvents
  • Built-in vacuum system, condenser, and gear pump included
  • Backed by Root Sciences technical support and training

For elite cannabinoid distillation with unmatched purity and throughput — trust the VKS-70 by Root Sciences.

Author

Root Sciences VTA VKS-70 – Specifications

Attribute Specification
Throughput Capacity 1,200 – 1,700 mL/h
Distillate Yield (per 8-hour shift) Approximately 4.8 – 5.4 liters
Evaporator Surface Area 0.05 m²
Power Requirements 240 V, 60 Hz, Single Phase, 60 A
Stages Single Stage
Dimensions (L × W × H) 5.1′ × 2.1′ × 7.0′ (approx. 1.55 m × 0.64 m × 2.13 m)
Weight Approximately 580 kg
Certification UL Ready (components UL listed)
Included Equipment Huber Chilling, Heating & Circulating Units; Vacuum Pump

Gently Used – 1 Available
